21 STEEZ LIMITED SV TW 1000S-XHL Repair, Parts Purchase

Model Number:4550133289422-00630210

※Attention
You cannot order a parts if you cannot see the parts number at the following list . Quantity is limited regarding some parts. If the payment is confirmed by Monday, shipping schedule is on Friday of the same week.
An order of only parts , we will add 50YEN as package cost.

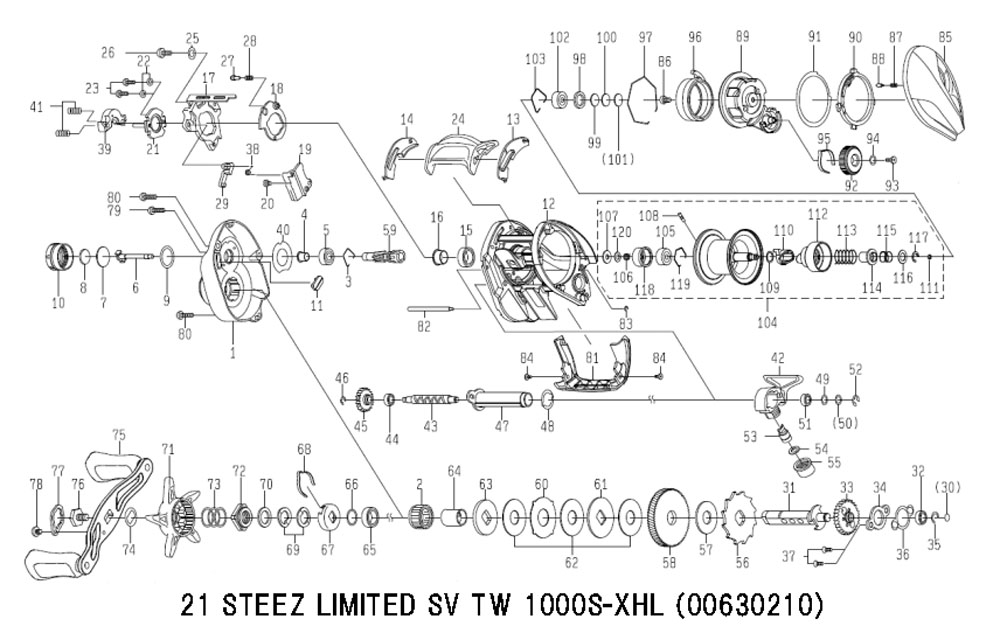

ORDER FORM - 21 STEEZ LIMITED SV TW 1000S-XHL

If you are not logged in, you cannot go to the purchase page.
and you cannot add to cart(cart update) product.
Please log in first.

No	Price	Number	Subtotal
1 LS Plate 6M422801	15730		0
2 One-way clutch 6G819801	2090		0
3 Pinion ring 6H448402	220		0
4 Pinion bearing collar 6J724601	990		0
5 Pinion ball bearing 6G538003	1540		0
6 Pinion shaft 6J279501	330		0
7 Mechanical brake W (A) 6H161001	110		0
8 Mechanical brake W (B) 6B175503	110		0
9 Mechanical brake O-ring 6J279701	110		0
10 Zero adjuster 6J279605	1980		0
11 Clutch cam SP cover plate 6H440201	220		0
12 Frame 6M427302	11880		0
13 Clutch lever plate (R) 6J280001	220		0
14 Clutch lever plate (L) 6J280101	220		0
15 Clutch cam ball bearing 6G431002	1540		0
16 Clutch cam bearing collar 6M518401	770		0
17 Clutch cam 6J333001	660		0
18 Clutch cam plate 6J333501	220		0
19 Kick lever plate (A) 6J333601	220		0
20 Kick lever plate SC 6H531507	220		0
21 Kick lever plate (B) 6H659103	330		0
22 Kick lever plate (B) SC-W 6G913306	110		0
23 Kick lever plate (B) SC 6B032905	330		0
24 Clutch lever 6J280702	990		0
25 Clutch cam plate W 6H159201	110		0
26 Clutch cam plate SC 63522509	220		0
27 Clutch cam plate pin 6J055201	220		0
28 Clutch cam plate SP 6H928801	220		0
29 Kick lever 6J333701	990		0
30 Gear shaft W 6G099801	110		0
31 Gear shaft 6J280902	2750		0
32*** Gear shaft ball bearing 6G466205	1540		0
33 Worm gear 6J281001	770		0
34 Gear shaft plate (B) 6J281101	330		0
35 Gear shaft retainer 63208002	220		0
36 Gear shaft plate (A) 6J281201	220		0
37 Gear shaft plate SC 6E134511	220		0
38 Kick lever plate SP 6J407801	220		0
39 Clutch plate 6H944401	330		0
40 Clutch SP plate 6J285901	220		0
41 Clutch SP 6J313901	220		0
42 Level wind 6M068201	7040		0
43 Worm shaft 6J243601	880		0
44 Worm shaft ball bearing 6G469001	1540		0
45 Worm shaft gear 6J281401	440		0
46 Worm shaft gear retainer 6B339801	220		0
47 Worm shield 6J333801	330		0
48 Worm shield plate 6J281601	220		0
49 Worm shaft W 6B411702	110		0
50 Worm shaft W (B) 6B411703	110		0
51 Worm shaft ball bearing 6G469001	1540		0
52 Worm shaft retainer 63205901	220		0
53 Pole 61214212	330		0
54 Pole W 63731303	110		0
55 Pole holder nut 6F402801	220		0
56 Ratchet 6H660901	330		0
57 Drive gear W 63746605	110		0
58 Pinion + drive gear set 6Z027075	6380		0
59 Pinion + drive gear set 6Z027075	6380		0
60 Drag grip W 6J085201	330		0
61 Drag disc W (A) 6F796301	220		0
62 Drag W 6H033002	770		0

No	Price	Number	Subtotal
63 Drag disc W (B) 6B360308	220		0
64 Drag collar 6G011401	880		0
65 Handle ball bearing 6G431002	1540		0
66*** Handle bearing W 6B553801	110		0
67 Drag holder 6F028203	330		0
68 Drag holder leaf SP 6F032401	220		0
69 Drag SP-W 61508901	220		0
70 Stard drag W 6H929501	220		0
71 Stard drag 6J295405	3300		0
72 Drag nut 6J141002	770		0
73 Drag nut SP 6J011901	220		0
74*** Handle W 6F576601	110		0
75 Handle 6M422501	9680		0
76 Handle SC 6J295501	990		0
77 Handle lock plate 6J319207	330		0
78 Handle lock plate SC 6G835502	330		0
79 RS plate SC (B) 6G040826	220		0
80 RS plate SC (A) 6G040822	330		0
81 Front cover 6J281806	1870		0
82 Oscillating post 6J281901	440		0
83 Oscillating post retainer 6H704101	220		0
84 Front cover SC 6H531507	220		0
85 RS plate 6M080001	4290		0
86 Set plate SC 6H666002	220		0
87 Lever plate SP 6J631901	220		0
88 Lever plate pin 6J286301	220		0
89 Set plate 6J334301	4840		0
90 Lever plate (A) 6J334501	220		0
91 Lever plate (B) 6J286101	220		0
92 Brake dial 6J282607	770		0
93 Brake dial SC 6G940402	220		0
94 Brake dial W 6H159201	110		0
95 Brake dial leaf SP 6H663401	220		0
96 Mag holder 6J296701	2420		0
97 Mag holder ring 6G757801	220		0
98 LS bearing W (C) 6G185101	110		0
99 LS bearing W (B) 63757411	110		0
100 LS bearing W (A) 63757404	110		0
101 RS bearing W (D) 63757406	110		0
102 LS ball bearing 6G511506	1540		0
103 LS bearing ring 6F032201	220		0
104 Spool (105-117) 6Z027091	16390		0
105 Spool ball bearing 6G511506	1540		0
106 Spool ball bearing SP 6M052601	220		0
107 Spool ball bearing W (A) 6M052501	110		0
108 Spool pin 6H358801	220		0
109 Spool holder collar (A) W 63755202	110		0
110 Spool holder collar (A) 6M041701	220		0
111 Spool holder O-ring 6H770601	110		0
112 Spool holder 6M385101	1980		0
113 Spool holder SP 6M042001	220		0
114 Spool holder collar (B) 6M391901	330		0
115 Spool holder collar (B) SP 6M042201	220		0
116 Spool holder collar (B) W 6J497001	110		0
117 Spool holder SP retainer 63208002	220		0
118 Spool bearing collar 6H232201	220		0
119 Spool bearing ring 6J149501	220		0
120 Spool ball bearing W (B) 6F774601	110		0
200 Handle knob cap 6J315802	660		0
201 Handle knob W 6B411703	110		0
202 Handle knob SP-W 6H744801	110		0
203 Handle knob 6J315501	2420		0
204 Handle knob ball bearing 6G469007	1540		0
205 Handle knob SC 6B679308	220		0
206 Frame Hog Sheet 6J374301	220		0
