*Please do not touch the rotating rollers as it may cause injury.
*During use, the device may become hot. Please be cautious of burns. Additionally, theres a risk of deformation of resin parts due to heat. Its advisable to occasionally allow it to cool down during use.
*After use, loosen the star drag and store the device only after it has cooled down completely.
*When attached to a table or similar surface, be aware that rubber marks may be left behind.
*The displayed tension values are approximate estimates.
*If you find that the tension is not applied properly when the line is inserted into the tensioner with almost no tension on the spooled line, adjustments may be necessary.
*For lines with low friction coefficients, such as coated lines, the tension roller may slip or spin freely. In such cases, loosening the tension slightly on the slipping side and tightening it on the opposite side may help.

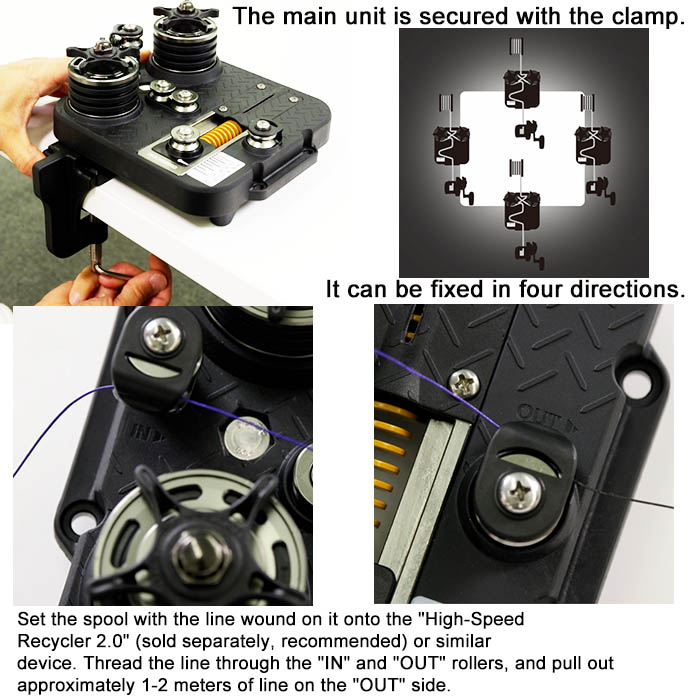

*Utilizing the "High-Speed Recycler 2.0" (sold separately) or similar devices to apply approximately 1 kg of tension while inserting the line into the tensioner can be effective.

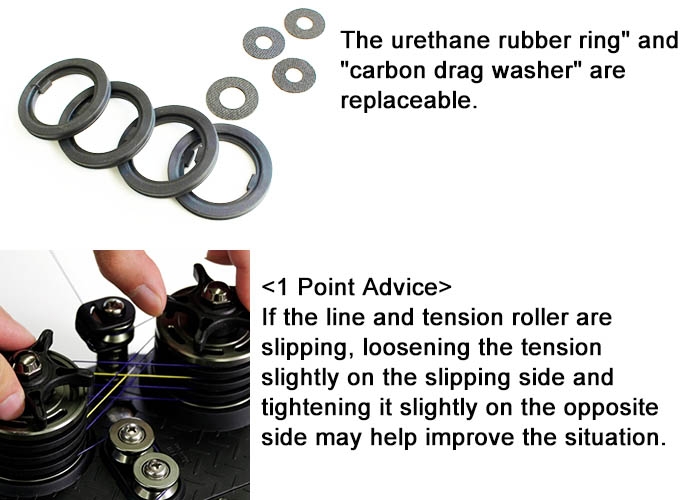

*Please understand that urethane rubber rings and carbon drag washers are consumable parts. Using worn urethane rubber rings may damage the line and lead to breakage. Please inspect the condition of the urethane rubber rings before use.
*For detailed information on purchasing parts, please refer to the "Parts & Repair" section on our website.
*To minimize significant damage to the urethane rubber rings, aim for a tension of approximately 50% to 60% of the lines rating in kilograms.
Product code
4995915333366 実20*18*15
Manufacturer
DAI-ICHI
Stock
○ : Available now □ : We will check the availability to the maker ☓ : Out of stock
□
33,000YEN
We will tell you an invoice and shiping schedule, after receiving an order Usually, we can ship within three days after payment check. Depending on goods, from the 7th to 14 days may be needed to shipment. Please understand the situation beforehand.
Size: 195mm x 185mm x 165mm
Weight: 1230g

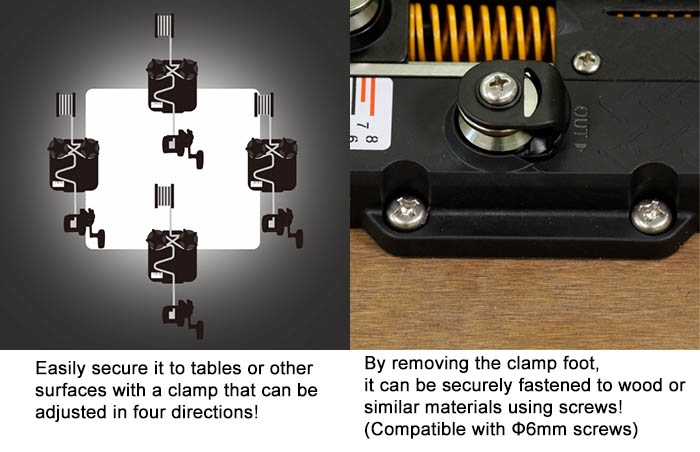

Maximum Clamp Attachment Width: 43mm
Compatible PE Line: Size 3 and above
Practical Tension: Approximately 6kg Maximum Tension: Approximately 8kg
Number of Ball Bearings: 14
Accessories: Main Unit x 1, Clamp x 1, Bolt x 1, Nut x 1, Spare Urethane Rubber Rings x 2
This product was added to our catalog on Friday 21 January, 2022.
